Surface Water Management Plan Requirements: A UK Guide
What Is a Surface Water Management Plan and Why It Matters
A surface water management plan (SWMP) is a detailed technical document that demonstrates how surface water will be managed on a development site, from initial rainfall through to final discharge into watercourses or drainage systems. Without a properly prepared SWMP, planning applications face rejection, projects face delays, and developers risk substantial financial losses.
The regulatory landscape has shifted significantly since the Flood and Water Management Act 2010 came into force. Local authorities and Lead Local Flood Authorities (LLFAs) now require strong evidence that surface water will be managed sustainably and will not increase flood risk to neighbouring properties.
Definition and Core Purpose
A surface water management plan identifies how rainfall falling on a development site will be captured, stored, filtered, or discharged. The core purpose is twofold: to prevent increased flood risk and to protect water quality. Rather than allowing surface water to run off rapidly into overloaded municipal drainage systems, modern SWMPs advocate for slowing the flow, filtering pollutants, and recharging groundwater where possible.
The plan typically covers the entire site lifecycle, from construction through to long-term operation, addressing peak flow rates, storage volumes, treatment methods, and maintenance protocols.
Legislative Context: The Flood and Water Management Act 2010
The Flood and Water Management Act 2010 fundamentally changed how surface water is regulated in England. The Act established a national framework with clear statutory duties for local authorities and LLFAs. Schedule 3 sets out when a surface water management plan is mandatory and the technical standards that must be met.
The Act introduced Sustainable Drainage Systems (SuDS), approaches that mimic natural hydrology. Permeable pavements, rain gardens, swales, detention basins, and green roofs all fall under this umbrella. For most developments, the planning authority will not grant permission without evidence that SuDS have been considered and, where feasible, incorporated.
Government guidance emphasises that developers cannot simply rely on existing public sewers. Instead, they must demonstrate that their site drains sustainably and that flood risk is managed at source.
Key Statutory Requirements for Surface Water Management Plans
When a SWMP Is Mandatory
Surface water management plan requirements apply to most developments, but trigger points vary by site size and location. Planning authorities typically require an SWMP for:
- Major developments (10 or more residential units, or commercial sites over 1,000 square metres)
- Any development in a flood risk zone (Flood Zones 2 or 3)
- Developments affecting a watercourse or on land within 8 metres of a main river
- Extensions or alterations that increase impermeable surface area significantly
- Construction projects with temporary surface water management needs
Some local authorities have lower thresholds. The best approach is to consult your LLFA early, as they will clarify whether your specific scheme needs one.
A surface water management plan should be prepared during the design phase, not after planning permission is granted.
Pro Tip
Contact your LLFA before finalising your site layout. Early consultation can identify drainage constraints and prevent costly redesigns later. Most LLFAs respond to pre-application enquiries within 2-3 weeks.
Essential Data and Flood Risk Assessment Criteria
A credible surface water management plan rests on solid baseline data. You will need:
- Topographical survey showing site levels and surrounding terrain
- Soil infiltration testing to establish permeability rates
- Existing drainage infrastructure mapping (public sewers, watercourses, culverts)
- Historical flood records for the site and surrounding area
- Rainfall intensity data for the region (typically 1-in-100-year storm plus climate change allowance)
- Groundwater levels and seasonal variation
The flood risk assessment criteria require you to demonstrate that your development will not increase flood risk elsewhere. Climate change adaptation is now mandatory. You must model scenarios 40% wetter than current rainfall patterns to account for future hydrological change.
Watch Out
Underestimating rainfall intensity is a common error that leads to plan rejection. Use the latest Met Office rainfall data for your region and apply the full climate change uplift.
Roles and Responsibilities of Local Authorities and Lead Local Flood Authorities
LLFA Review and Approval Process
The Lead Local Flood Authority (typically the county council or unitary authority) has a statutory duty to review surface water management plans and provide technical advice to the planning authority. When you submit your surface water management plan, the planning authority will consult the LLFA.
The LLFA will assess whether the plan is technically sound, proposed SuDS are appropriate for soil type and groundwater conditions, flood risk has been properly assessed, long-term maintenance arrangements are clear and enforceable, and the plan aligns with the local flood risk management strategy.
This process typically takes 4-6 weeks. Working collaboratively at this stage is far more efficient than waiting for a formal objection.
The Four Phases of Surface Water Management Plan Development
Phase 1: Site Assessment and Data Collection

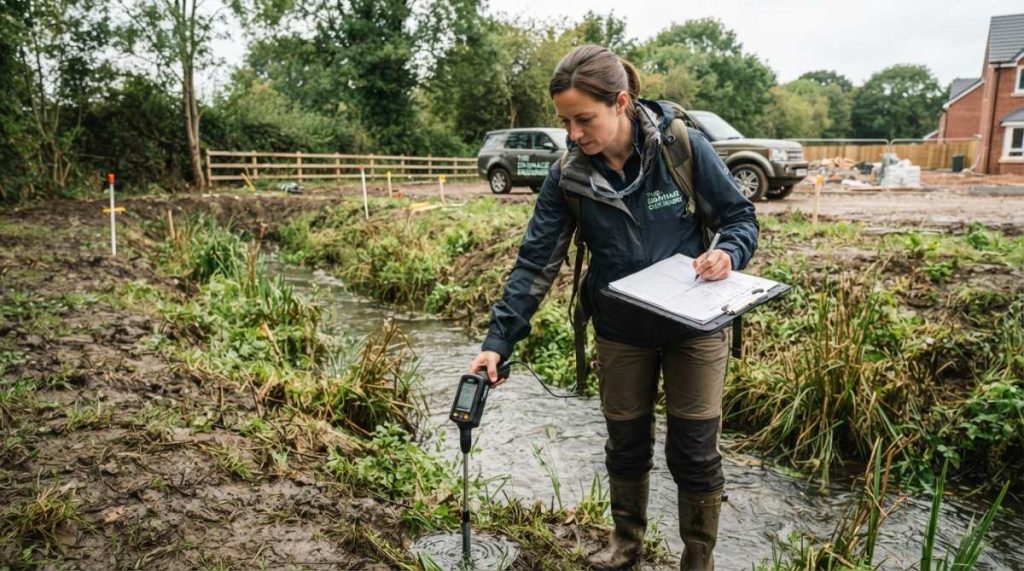

The foundation of any credible surface water management plan is thorough site investigation. Topographical surveys establish the site’s slope and aspect. Soil testing determines infiltration rates, essential for sizing SuDS features. Groundwater monitoring reveals seasonal fluctuations that affect drainage design. Historical flood mapping identifies whether the site or surrounding area has a track record of surface water flooding.
This phase typically takes 4-8 weeks, depending on site size and complexity.
Phase 2: Hydrological Modelling and Risk Mapping
Once baseline data is gathered, hydrological modelling translates it into actionable design parameters. This involves running storm scenarios through computer models to calculate peak flow rates, storage volumes, and treatment requirements.
Modelling software such as HEC-RAS, SWMM, or InfoWorks ICM simulates rainfall events of varying intensity and duration. The output shows how water moves across the site, where it accumulates, and what flows enter downstream drainage systems. Risk mapping identifies flood-prone areas on and around the site.
Phase 3: Mitigation Strategy and Implementation Planning
With risks mapped and flows quantified, the next step is designing mitigation measures. Mitigation strategies typically combine several approaches:
- Reducing impermeable surface area through permeable pavements and green roofs
- Attenuating peak flows using detention basins, rain gardens, or underground storage
- Treating surface water through filtration or biological processes before discharge
- Infiltrating water into the ground where soil conditions permit
- Discharging to watercourses or public sewers at controlled rates
Each measure must be sized to handle the design storm, typically a 1-in-100-year event plus climate change allowance. The plan should show cross-sections, drainage layouts, and maintenance access routes.
Phase 4: Stakeholder Consultation and Approval
The final phase involves presenting your surface water management plan to stakeholders and securing formal approval. This includes the LLFA, the planning authority, and potentially the water company if discharge is to public sewers.
Consultation is an opportunity to address concerns early and build support for your scheme. Once approval is secured, the surface water management plan becomes a binding document. Maintenance obligations typically pass to the site owner or management company, with detailed specifications set out in the plan.
Sustainable Drainage Systems (SuDS) Integration in Your Surface Water Drainage Strategy
SuDS Requirements in Planning Applications
Sustainable Drainage Systems are no longer optional, they are the default expectation in modern planning. National Planning Policy Framework guidance states that major developments should incorporate SuDS unless there are clear reasons not to.
The SuDS hierarchy prioritises infiltration (allowing water to soak into the ground), followed by attenuation and discharge to surface water bodies, then discharge to public sewers. Discharge to public sewers is the last resort, used only when other options are genuinely infeasible.
Common SuDS features include permeable pavements, rain gardens, swales, detention basins, green roofs, and underground storage. Your surface water management plan should explain why you have selected particular features and ruled out others.
Key Takeaway
The most resilient surface water management plans use a mix of SuDS features, each handling a different part of the rainfall spectrum. This redundancy ensures that if one feature is overwhelmed, others continue functioning.
Cost-Benefit Analysis for Private Developers
Many developers assume that SuDS integration adds significant cost. Permeable pavements and rain gardens do cost more upfront than conventional tarmac and piped drainage. However, this is often offset by reduced sewer connection fees, smaller pipe sizes, and reduced storage requirements.
More importantly, SuDS integration significantly improves planning success rates. A well-designed SWMP with credible SuDS proposals is far more likely to secure approval first time, avoiding delays and additional costs.
Construction Surface Water Management Plan: Practical Implementation Steps
Step 1: Engage Specialists Early
Do not treat the surface water management plan as an afterthought. Engage drainage engineers, hydrologists, and environmental consultants during the masterplanning phase, not after layouts are fixed. Early involvement ensures that drainage constraints are understood and incorporated into the design.
Step 2: Conduct Baseline Surveys and Mapping
Commission a topographical survey accurate to 0.1 metres. Undertake soil infiltration testing at multiple locations across the site. Request existing drainage records from the water company and local authority. Obtain historical flood records from the Environment Agency and local sources.
This data collection phase is the foundation of a credible plan.
Step 3: Prepare Your Submission Package
Your surface water management plan submission should include an executive summary, site location plan and existing drainage infrastructure, topographical survey and flood risk mapping, hydrological modelling report with storm scenarios, proposed drainage layout and SuDS specifications, cross-sections showing storage volumes and infiltration depths, maintenance and long-term management plan, and appendices with technical data and calculations.
The submission should be clear, well-illustrated, and easy for non-specialists to follow.
Climate Change Adaptation Modelling and Future-Proofing Your Plan
Climate change adaptation is now a statutory requirement in surface water management plan requirements. You must model rainfall scenarios 40% wetter than current patterns to account for projected hydrological change by 2050.
Modelling at this intensity reveals whether your proposed drainage can handle genuinely extreme events. A detention basin sized for current climate may overflow under future rainfall. Identifying these risks now allows you to design storage, treatment, and discharge capacity that remains resilient for decades.
Common Mistakes to Avoid in Surface Water Management Plan Development
A recurring error is underestimating site runoff. Developers often assume that permeable surfaces or green features will absorb more water than they realistically can. Hydrological modelling must be rigorous and must account for saturation conditions during intense storms.
Another mistake is treating the surface water management plan as a technical document disconnected from the design. The best plans integrate drainage into the landscape and masterplan, making SuDS features visible and functional.
Insufficient maintenance planning is a third common error. Specify who will maintain each feature, how often, what triggers maintenance, and what the cost will be.
Finally, avoid submitting plans without LLFA pre-application consultation. Early engagement identifies concerns before formal submission, allowing you to address them proactively.
Watch Out
A surface water management plan that lacks maintenance specifications is likely to be rejected or approved with conditions that delay your project. Maintenance must be detailed, costed, and enforceable.
Summary Table: Surface Water Management Plan Development Process
| Phase | Duration | Key Deliverables | Critical Success Factor |
|---|---|---|---|
| Site Assessment & Data Collection | 4-8 weeks | Surveys, infiltration tests, flood records, groundwater data | Accurate baseline data |
| Hydrological Modelling & Risk Mapping | 3-6 weeks | Flow calculations, storage sizing, flood extent mapping | Conservative rainfall assumptions (including climate change) |
| Mitigation Strategy & Design | 4-8 weeks | SuDS specifications, drainage layouts, cross-sections | Integration with site masterplan |
| Stakeholder Consultation & Approval | 4-6 weeks | LLFA feedback, water company sign-off, planning authority review | Proactive engagement with LLFA |
Conclusion
Surface water management plan requirements are now central to planning approval across the UK. Whether you are developing a major commercial site, a residential scheme, or a domestic extension in a flood-prone area, a credible SWMP is essential. The process demands rigour, solid baseline data, honest hydrological modelling, pragmatic SuDS design, and clear maintenance planning.
The Drainage Designers (Woodvale consulting Ltd) simplifies this process with comprehensive site visits, specialist hydrological modelling, and direct engagement with local authorities and LLFAs. Our team brings experience from hundreds of planning applications across the UK, understanding the specific requirements of each authority and the practical trade-offs between cost, resilience, and approval certainty. We deliver surface water management plans that secure first-time approval and remain compliant throughout the project lifecycle.
Get in touch with The Drainage Designers (Woodvale consulting Ltd) and let us handle the complexity of your surface water management plan so you can focus on your development.
Frequently Asked Questions
What is a Surface Water Management Plan (SWMP) in the UK and when is it required?
A Surface Water Management Plan is a detailed technical document that assesses how surface water will be managed on a development site, including flood risk, drainage routes, and mitigation measures. It is typically required by local authorities and Lead Local Flood Authorities for developments above certain thresholds, usually those exceeding 1 hectare or creating more than 1,000 square metres of impermeable surface. The Flood and Water Management Act 2010 establishes the statutory framework requiring responsible authorities to assess and manage flood risk from surface water.
What are the main responsibilities of a Lead Local Flood Authority (LLFA) in surface water management?
Lead Local Flood Authorities are responsible for developing and maintaining a Surface Water Management Strategy, coordinating flood risk assessments across their catchment area, and reviewing planning applications that may affect surface water drainage. They assess whether proposed drainage systems meet statutory requirements, evaluate flood risk zones, and provide technical guidance to local planning authorities. LLFAs also work with responsible authorities and stakeholders to ensure surface water flooding risks are properly mitigated through sustainable drainage systems and infrastructure planning.
How do Sustainable Drainage Systems (SuDS) integrate into a surface water management plan?
Sustainable Drainage Systems are now a mandatory consideration in surface water management plans across the UK. SuDS must be designed as the primary drainage solution, with conventional systems only used where SuDS are technically or economically unfeasible. Your SWMP should detail SuDS features such as permeable paving, green roofs, retention ponds, and wetlands that reduce surface water runoff, recharge groundwater, and improve water quality. The integration of SuDS also provides cost-benefit advantages by reducing flooding risk whilst enhancing environmental and amenity value on your site.
What should a construction surface water management plan include to satisfy planning requirements?
Your construction surface water management plan must include site-specific flood risk assessment data, hydrological modelling results showing how water will be managed during and after construction, detailed drainage maps showing catchment areas and topography, SuDS proposals with maintenance schedules, and evidence of stakeholder consultation with your local authority and LLFA. The plan must also address pluvial flooding risks, demonstrate compliance with the Flood and Water Management Act 2010, and include contingency measures for extreme weather events. Technical guidance from your LLFA will specify local requirements that must be met for approval.
